| Onderdeel nommer | B156ZAN03.5 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LCM , LTPS TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| model naam | B156ZAN03.5 (AUO35EB) |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM , LTPS TFT-LCD |
| pixel nommer | 3840(RGB)×2160 (UHD) 283PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.218 × 193.622 (H×V) |
| buitelyn (mm) | 349.22 × 214.21 × 2.6 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AHVA, Normally Black, Transmissive |
| kleurdiepte | 16.7M 100% sRGB |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |

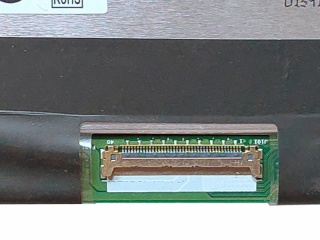

| sein tipe | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
