| Onderdeel nommer | B156ZAN03.2 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | AUO |
| model | B156ZAN03.2 (AUO32EB) |
| diagonale grootte | 15.6 inch |
| tipe | LTPS TFT-LCD, LCM |
| pixel formaat | 3840(RGB)×2160 [UHD] 283PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 344.218(H)×193.622(V) mm |
| buitelyn dof. | 350.66(H)×216.45(V) ×2.6(D) mm |
| ring area | - |
| behandeling | Antiglare |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 100% Adobe RGB |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |

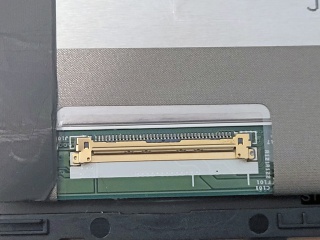

| koppelvlak tipe | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| LTN156FL01-D01 | Samsung | 15.6 | 3840×2160 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156B6-L04 | Innolux | 15.6 | 1366×768 |
