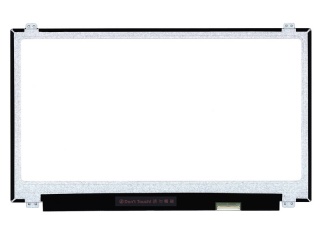

| Onderdeel nommer | B156ZAN02.2 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | AUO |
| model | B156ZAN02.2 (AUO22EB) |
| diagonale grootte | 15.6 inch |
| tipe | LTPS TFT-LCD, LCM |
| pixel formaat | 3840(RGB)×2160 [UHD] 282PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 345.6(H)×194.4(V) mm |
| buitelyn dof. | 358.14(H)×224.4(V) ×3.2(D) mm |
| ring area | - |
| behandeling | Antiglare |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 72% NTSC |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HW01 V4 | AUO | 15.6 | 1920×1080 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-J08 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
