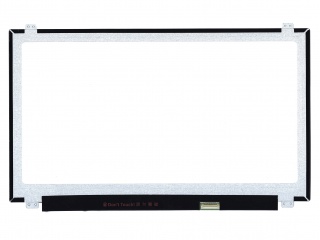

| Onderdeel nommer | B156HAN06.2 HWNA |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | AUO |
| model | B156HAN06.2 HWNA 39 Compatible |
| diagonale grootte | 15.6 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 344.16(H)×193.59(V) mm |
| buitelyn dof. | 359.5(H)×223.8(V) ×3.2(D) mm |
| ring area | - |
| behandeling | Glare (Haze 0%) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 700:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 262K 45% NTSC |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (2 Lanes) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
