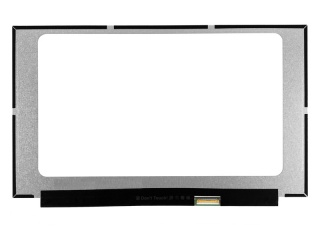

| Onderdeel nommer | B156HAK02.0 HW1B |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| model naam | B156HAK02.0 HW1B (AUO20ED) |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| buitelyn (mm) | 350.66 × 216.15 × 3.4 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 700 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AHVA, Normally Black, Transmissive |
| kleurdiepte | 262K 45% NTSC |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | On-Cell Touch |
| sein tipe | eDP (2 Lanes) , eDP1.2 , Connector 40 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
