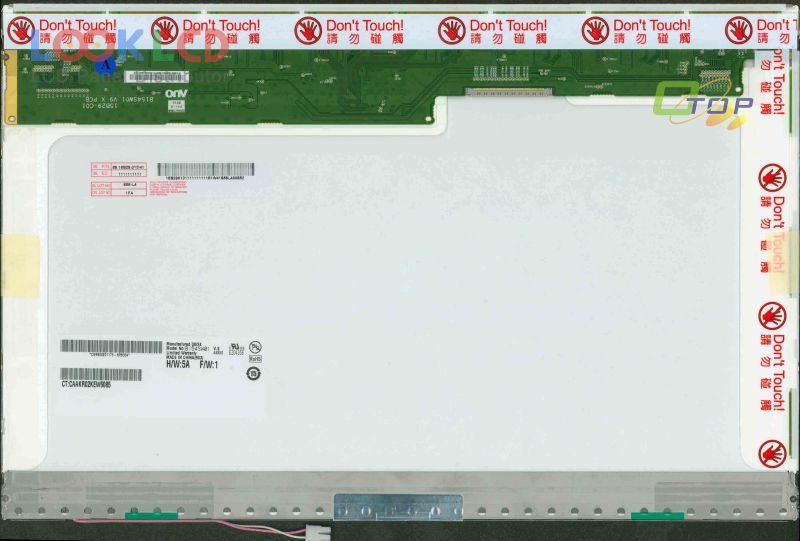

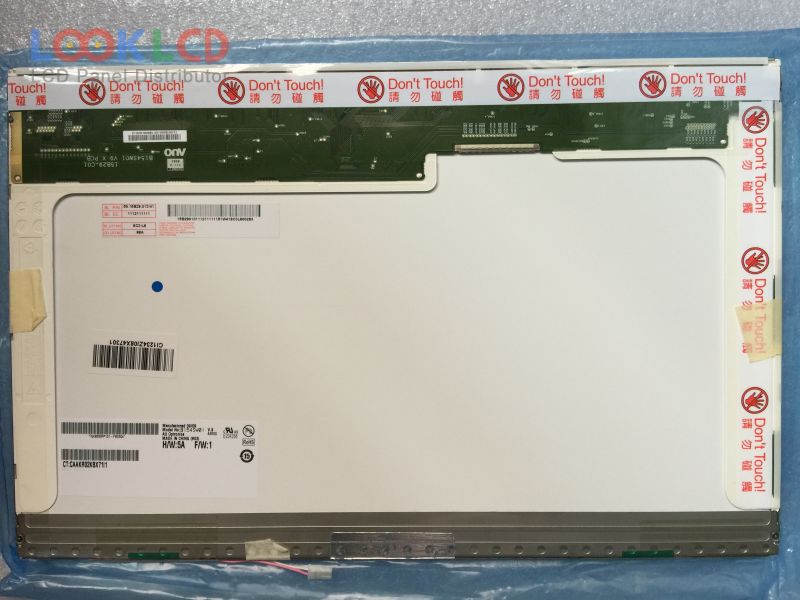

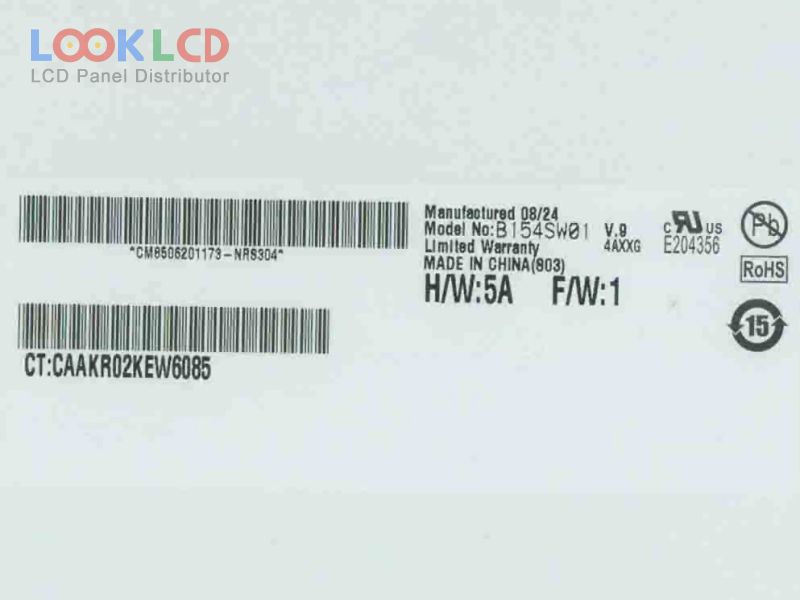

| Onderdeel nommer | B154SW01 V9 |
| Handelsmerk | AUO |
| Grootte | 15.4 |
| Toepassing | NBPC |
| Resolusie | 1680×1050 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | B154SW01 V9 9 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.4 inch |
| resolusie | 1680(RGB)×1050 , WSXGA+ |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 331.38×207.11 mm |
| buitelyn | 344×222×6.5 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 8 (Typ.)(Tr+Td) |
| kykhoek | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
