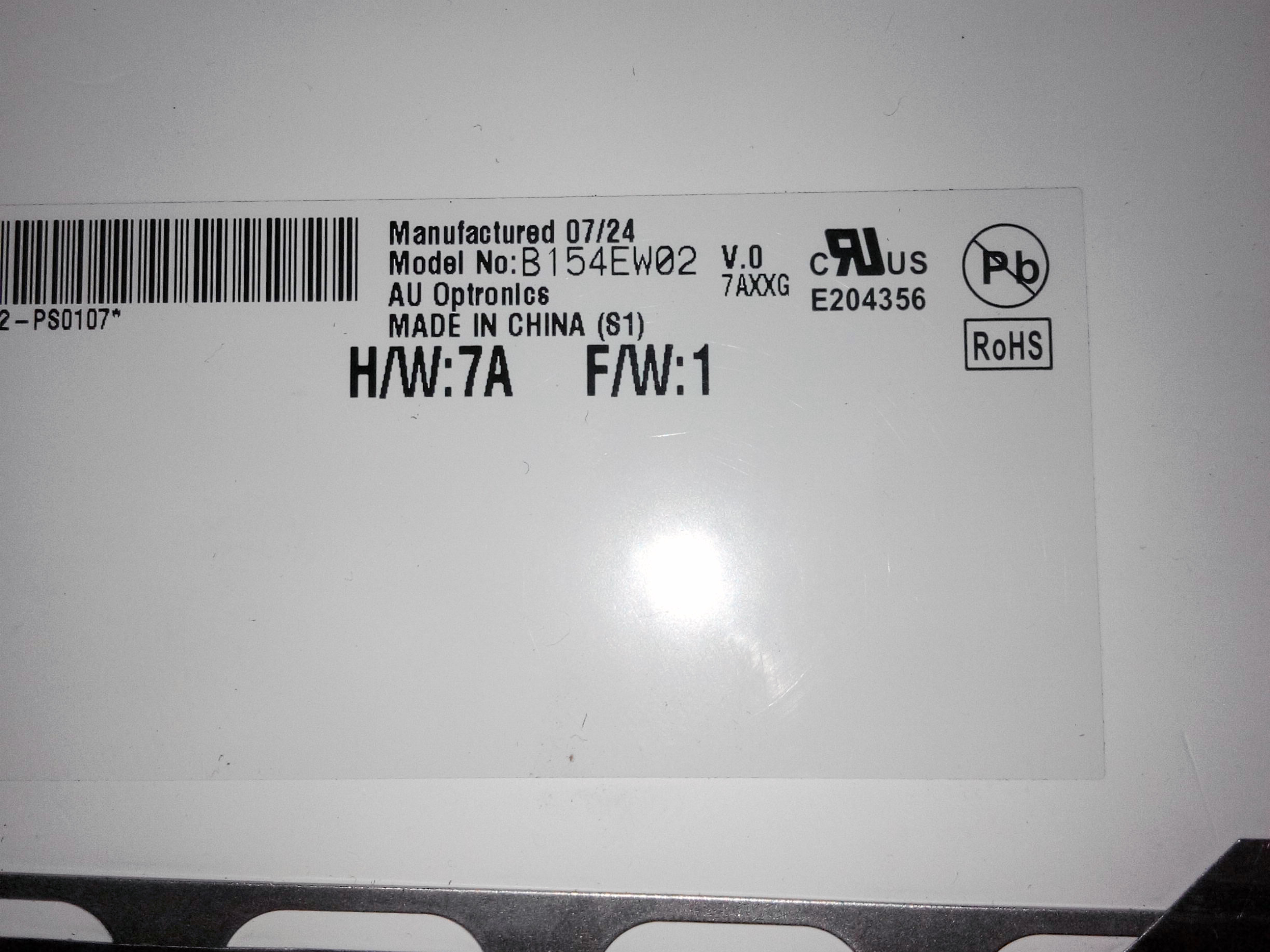

| Onderdeel nommer | B154EW02 V0 HW3A |
| Handelsmerk | AUO |
| Grootte | 15.4 |
| Toepassing | Laptop |
| Resolusie | 1280×800 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | 1 |
| Koppelvlak | LVDS |
| vervaardiger | AUO |
| model naam | B154EW02 V0 HW3A 1 Compatible |
| skerm grootte | 15.4 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1280(RGB)×800 (WXGA) 98PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 331.2 × 207 (H×V) |
| buitelyn (mm) | - |
| ring area (mm) | 335.35 × 211.05 (H×V) |
| behandeling | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 400 : 1 (Typ.) (TM) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| reaksie | 4/12 (Typ.)(Tr/Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 45% NTSC |
| agterlig | 1 pcs CCFL , 10K hours , No Driver |
| omtrek vorm | Wedge (PCBA Bent, T≥5.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 6-bit) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| B154EW02 V2 | AUO | 15.4 | 1280×800 |
| B154EW02 V3 | AUO | 15.4 | 1280×800 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| B154EW02 V7 | AUO | 15.4 | 1280×800 |
| B154EW04 V7 | AUO | 15.4 | 1280×800 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN154X3-L09-0 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L09-G | Samsung | 15.4 | 1280×800 |
