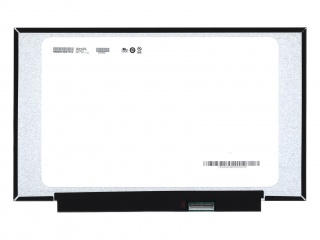

| Onderdeel nommer | B140XTK02.1 |
| Handelsmerk | AUO |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | AUO |
| paneel model | B140XTK02.1 (AUO213C) |
| paneel grootte | 14.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 112PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 309.399(W)×173.952(H) mm |
| ring opening | - |
| omtrek grootte | 315.9(W)×197.54(H) ×3.2(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) (TM) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 8 (Typ.)(G to G) |
| kleure vertoon | 262K 44% NTSC |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | On-Cell Touch |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XTN03.9 | AUO | 14.0 | 1366×768 |
| B140XTT01.0 | AUO | 14.0 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| B140XW02 V0 | AUO | 14.0 | 1366×768 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
