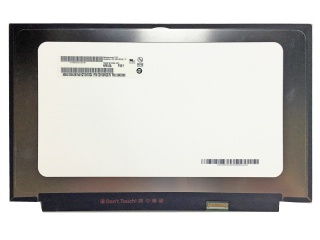

| Onderdeel nommer | B140HAN03.2 HW0A |
| Handelsmerk | AUO |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | AUO |
| model | B140HAN03.2 HW0A |
| diagonale grootte | 14.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 157PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 309.37(H)×174.02(V) mm |
| buitelyn dof. | 315.1(H)×195.65(V) ×2.4(D) mm |
| ring area | - |
| behandeling | Hard coating (3H) |
| helderheid | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 16.2M |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
