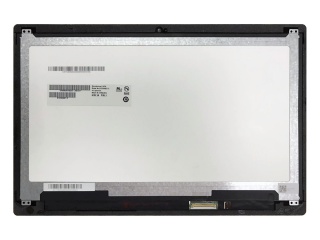

| Onderdeel nommer | B133HAB01.0 HW1A |
| Handelsmerk | AUO |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, Assemb |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | AUO |
| model | B133HAB01.0 HW1A (AUO102D) |
| diagonale grootte | 13.3 inch |
| tipe | a-Si TFT-LCD, Assembly |
| pixel formaat | 1920(RGB)×1080 [FHD] 166PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 293.472(H)×165.078(V) mm |
| buitelyn dof. | 317(H)×208(V) ×4.2(D) mm |
| ring area | - |
| behandeling | Anti-Scatter, Hard coating (7H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 262K 45% NTSC |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | - |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | On-Cell Touch |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
