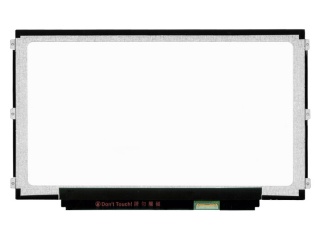

| Onderdeel nommer | B125XTN01.0 HW1A |
| Handelsmerk | AUO |
| Grootte | 12.5 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | AUO |
| paneel model | B125XTN01.0 HW1A (AUO106C) |
| paneel grootte | 12.5" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 125PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 276.615(W)×155.52(H) mm |
| ring opening | - |
| omtrek grootte | 300.4(W)×181.4(H) ×3(D) mm |
| oppervlak | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) (TM) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 16 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 45% NTSC |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| B125HAN02.0 | AUO | 12.5 | 1920×1080 |
| HB125WX1-200 | BOE | 12.5 | 1366×768 |
| LP125WF2-SPB1 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB2 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLT2 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLD1 | LG Display | 12.5 | 1366×768 |
| M125NWR3 R0 | IVO | 12.5 | 1366×768 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
