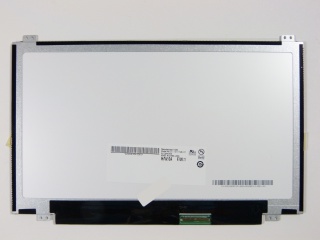

| Onderdeel nommer | B116XTN04.0 HW1A |
| Handelsmerk | AUO |
| Grootte | 11.6 |
| Toepassing | Laptop Netbook PC |
| Resolusie | 1366×768 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | AUO |
| model naam | B116XTN04.0 HW1A (AUO405C) |
| skerm grootte | 11.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1366(RGB)×768 (WXGA) 135PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 256.125 × 144 (H×V) |
| buitelyn (mm) | 278 × 168 × 3.6 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 400 : 1 (Typ.) (TM) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| reaksie | 8 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 45% NTSC |
| agterlig | WLED , 10K hours , With LED Driver |
| omtrek vorm | Flat (PCBA Flat, T3.4~4.0mm) |
| gebruik vir | Laptop Netbook PC |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
