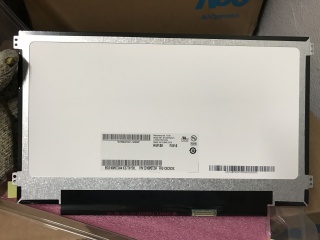

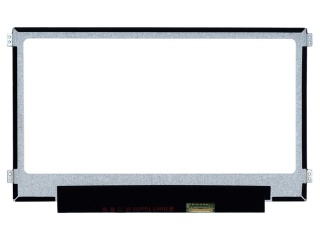

| Onderdeel nommer | B116XTN02.5 |
| Handelsmerk | AUO |
| Grootte | 11.6 |
| Toepassing | Laptop Netbook PC |
| Resolusie | 1366×768 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| skerm grootte | 11.6 inch |
| pixel nommer | 1366(RGB)×768 (WXGA) 135PPI |
| aktiewe area (mm) | 256.125 × 144 (H×V) |
| ring area (mm) | - |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| goeie uitsig by | 6 o'clock |
| kleurdiepte | 262K 45% NTSC |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | B116XTN02.5 (AUO255C) |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 278 × 168 × 3 (H×V×D) |
| behandeling | Antiglare |
| kontras verhouding | 400 : 1 (Typ.) (TM) |
| reaksie | 8 (Typ.)(Tr+Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop Netbook PC |
| raakskerm | Without |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
