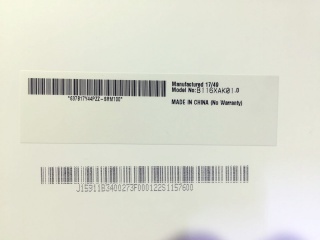

| Onderdeel nommer | B116XAK01.0 |
| Handelsmerk | AUO |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | AUO |
| model | B116XAK01.0 (AUO405C) |
| diagonale grootte | 11.6 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1366(RGB)×768 [WXGA] 135PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 256.125(H)×144(V) mm |
| buitelyn dof. | 278(H)×168.02(V) ×3.2(D) mm |
| ring area | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 27 (Typ.)(Tr+Tf) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 262K 50% NTSC |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | On-Cell Touch |
| Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
