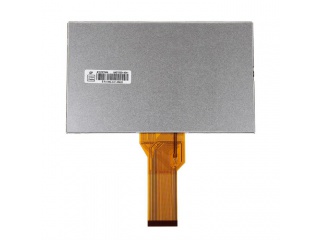

| Onderdeel nommer | AT070TN04 |
| Handelsmerk | Innolux |
| Grootte | 7.0 |
| Toepassing | Automotive Display |
| Resolusie | 480×234 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 300:1 |
| Kleure | Full |
| Agterlig | CCFL |
| Koppelvlak | TFT |
| handelsmerk | Innolux |
| diagonale grootte | 7.0 inch |
| pixel formaat | 480(RGB)×234 76PPI |
| aktiewe area | 154.08(H)×86.58(V) mm |
| ring area | - |
| helderheid | 500 cd/m² (Typ.) |
| kyk rigting | 6 o'clock |
| kykhoek | 60/60/40/60 (Typ.)(CR≥10) |
| ondersteun kleur | Full color |
| gewig | 160g (Typ.) |
| raamkoers | 60Hz |
| koppelvlak tipe | TFT Specific Analog RGB , 26 pins FPC |
| kragtoevoer | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | AT070TN04 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 164.9(H)×100(V) ×6(D) mm |
| behandeling | Antiglare |
| kontras verhouding | 300:1 (Typ.) (TM) |
| reaksie tyd | 10/20 (Typ.)(Tr/Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| Ligbron | CCFL [1 pcs] , 10K hours , W/O Driver |
| ontwerp vir | Automotive Display |
| raakpaneel | Without |
