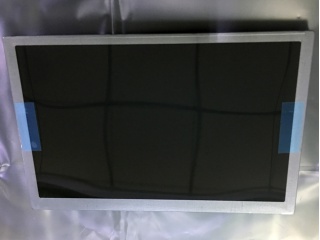

| Onderdeel nommer | AT070MP11 |
| Handelsmerk | Mitsubishi |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | Mitsubishi |
| model naam | AT070MP11 |
| skerm grootte | 7.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 800(RGB)×480 (WVGA) 133PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 152.4 × 91.44 (H×V) |
| buitelyn (mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| ring area (mm) | 154.4 × 93.5 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 1300 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 4/12 (Typ.)(Tr/Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | SWV, Normally Black, Transmissive |
| kleurdiepte | 262K/16.7M 50% NTSC |
| agterlig | WLED , 100K hours , No Driver |
| massa | 200g |
| gebruik vir | Industrial Outdoor High Brightness Automotive Display |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
