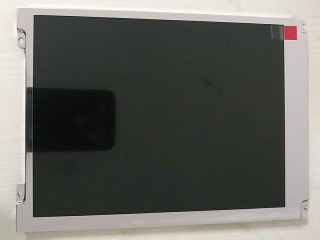

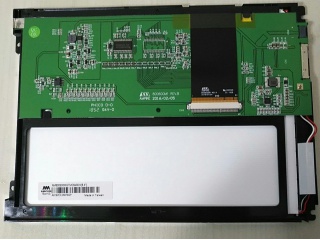

| Onderdeel nommer | AM-800600MGTMQW-00H |
| Handelsmerk | AMPIRE |
| Grootte | 8.4 |
| Toepassing | Industrial |
| Resolusie | 800×600 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleure | 16.7M |
| Agterlig | 12S4P |
| Koppelvlak | LVDS |
| vervaardiger | AMPIRE |
| model naam | AM-800600MGTMQW-00H |
| skerm grootte | 8.4 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 800(RGB)×600 (SVGA) 119PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 170.4 × 127.8 (H×V) |
| buitelyn (mm) | 203 × 145.5 × 10.9 (H×V×D) |
| ring area (mm) | 174.15 × 131.2 (H×V) |
| behandeling | - |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 600 : 1 (Typ.) (TM) |
| kykhoek | 75/75/60/70 (Typ.)(CR≥10) |
| reaksie | 8 (Typ.)(Tr+Td) ms |
| goeie uitsig by | - |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 16.7M |
| agterlig | 12S4P WLED , 50K hours , With LED Driver |
| massa | TBD |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 8-bit) , Connector 20 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
