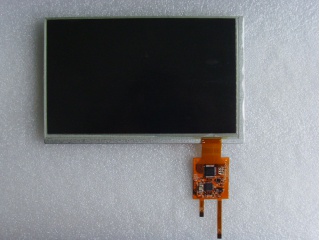

| Onderdeel nommer | AM-800480RBTMQW-TA1H-A |
| Handelsmerk | AMPIRE |
| Grootte | 7.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | 3S10P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-800480RBTMQW-TA1H-A |
| paneel grootte | 7.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 800(RGB)×480, WVGA, 133PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 152.4(W)×91.44(H) mm |
| ring opening | 155.3(W)×94.3(H) mm |
| omtrek grootte | 165(W)×104.44(H) ×8.06(D) mm |
| oppervlak | - |
| helderheid | 255 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) (TM) |
| kykhoek | 70/70/70/60 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 5/11 (Typ.)(Tr/Td) |
| kleure vertoon | 262K |
| tipe lamp | 3S10P WLED , 40K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | PCAP |
| paneel gewig | TBD |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 6-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
