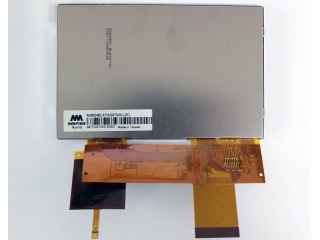

| Onderdeel nommer | AM-800480LATMQW-TN0H-L |
| Handelsmerk | AMPIRE |
| Grootte | 5.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 250:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | AMPIRE |
| diagonale grootte | 5.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 188PPI |
| aktiewe area | 108(H)×64.8(V) mm |
| helderheid | 360 cd/m² (Typ.) |
| kyk rigting | - |
| kykhoek | 70/70/70/50 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 52% NTSC |
| gewig | - |
| raamkoers | 60Hz |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | AM-800480LATMQW-TN0H-L |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 118.5(H)×74(V) ×5.16(D) mm |
| kontras verhouding | 250:1 (Typ.) (TM) |
| reaksie tyd | 15/35 (Max.)(Tr/Td) |
| bedryfsmodus | TN, Normally White, Transflective |
| Ligbron | WLED [3S6P] , W/O Driver |
| ontwerp vir | Industrial |
| raakpaneel | PCAP |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| L5F30705T10 | Epson | 5.0 | 400×240 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| M050SWN1 R2 | IVO | 5.0 | 480×234 |
| P50AD2 | E Ink | 5.0 | 320×234 |
