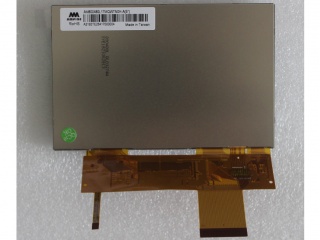

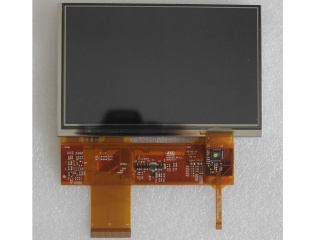

| Onderdeel nommer | AM-800480L1TMQW-TN0H-A |
| Handelsmerk | AMPIRE |
| Grootte | 5.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 250:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | AMPIRE |
| model | AM-800480L1TMQW-TN0H-A |
| diagonale grootte | 5.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 188PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 108(H)×64.8(V) mm |
| buitelyn dof. | 118.5(H)×74(V) ×5.01(D) mm |
| ring area | 110.6(H)×67.4(V) mm |
| behandeling | Antiglare |
| helderheid | 360 cd/m² (Typ.) |
| kontras verhouding | 250:1 (Typ.) (TM) |
| kyk rigting | 6 o'clock |
| reaksie tyd | 15/35 (Typ.)(Tr/Td) |
| kykhoek | 70/70/70/50 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 16.7M 52% NTSC |
| Ligbron | WLED [3S6P] , W/O Driver |
| gewig | - |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | PCAP |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
