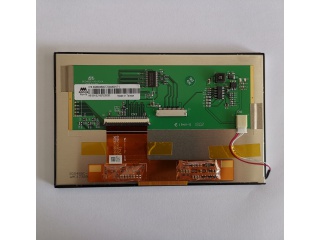

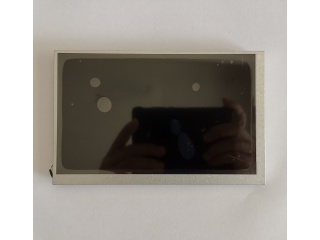

| Onderdeel nommer | AM-800480CTZQW-A5H |
| Handelsmerk | AMPIRE |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K |
| Agterlig | 6S5P |
| Koppelvlak | LVDS |
| vervaardiger | AMPIRE |
| model naam | AM-800480CTZQW-A5H |
| skerm grootte | 7.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 800(RGB)×480 (WVGA) 133PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 152.4 × 91.44 (H×V) |
| buitelyn (mm) | 165 × 104.4 × 11.61 (H×V×D) |
| ring area (mm) | 15.48 × 93.85 (H×V) |
| behandeling | - |
| helderheid | 1500 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS, Normally Black, Transmissive |
| kleurdiepte | 262K 58% NTSC |
| agterlig | 6S5P WLED , 50K hours , With LED Driver |
| massa | - |
| gebruik vir | Industrial Outdoor High Brightness |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (1 ch, 6-bit) , 20 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
