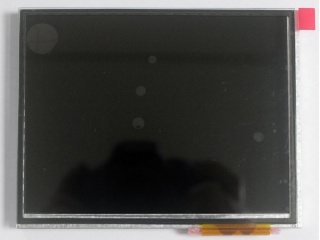

| Onderdeel nommer | AM-640480V2TZQW-TA7H |
| Handelsmerk | AMPIRE |
| Grootte | 5.7 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 640×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 262K |
| Agterlig | 4S7P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-640480V2TZQW-TA7H |
| paneel grootte | 5.7" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 640(RGB)×480, VGA, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 115.2(W)×86.4(H) mm |
| ring opening | - |
| omtrek grootte | 127(W)×98.43(H) ×10.88(D) mm |
| oppervlak | - |
| helderheid | 850 cd/m² (Typ.) |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 60% NTSC |
| tipe lamp | 4S7P WLED , 50K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | PCAP |
| paneel gewig | - |
| aansoek | Industrial Outdoor High Brightness |
| sein koppelvlak | LVDS (1 ch, 6-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
