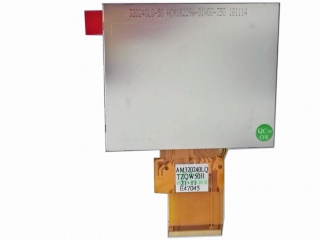

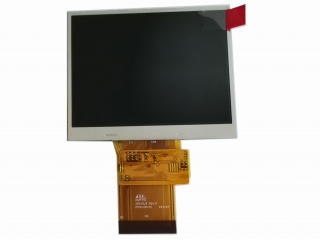

| Onderdeel nommer | AM-320240LQTZQW-50H |
| Handelsmerk | AMPIRE |
| Grootte | 3.5 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 320×240 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 6S2P |
| Koppelvlak | Parallel |
| paneel handelsmerk | AMPIRE |
| paneel grootte | 3.5" |
| resolusie | 320(RGB)×240, QVGA, 115PPI |
| vertoon area | 70.08(W)×52.56(H) mm |
| omtrek grootte | 76.9(W)×63.9(H) ×3.45(D) mm |
| helderheid | 800 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 60% NTSC |
| frekwensie | 60Hz |
| paneel gewig | - |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneel model | AM-320240LQTZQW-50H |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 72.88(W)×54.94(H) mm |
| oppervlak | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| vertoonmodus | Normally Black, Transmissive |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| tipe lamp | 6S2P WLED , 36K hours , Without Driver |
| raakskerm | Without |
| aansoek | Industrial Outdoor High Brightness Instruments & Meters |
