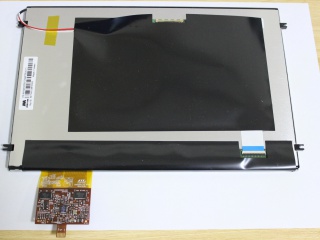

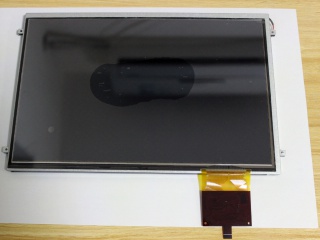

| Onderdeel nommer | AM-19201200B1TZQW-T09 |
| Handelsmerk | AMPIRE |
| Grootte | 10.1 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1920×1200 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | AMPIRE |
| paneel grootte | 10.1" |
| resolusie | 1920(RGB)×1200, WUXGA, 224PPI |
| vertoon area | 216.806(W)×135.504(H) mm |
| omtrek grootte | 243.45(W)×155.2(H) mm |
| helderheid | 850 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 53% NTSC |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | AM-19201200B1TZQW-T09 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| tipe lamp | WLED , 50K hours , With LED Driver |
| raakskerm | PCAP |
| aansoek | Industrial Outdoor High Brightness |
