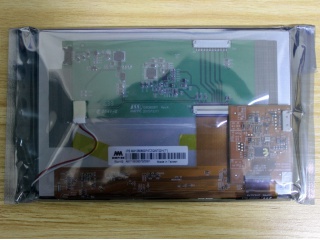

| Onderdeel nommer | AM-1280800P4TZQW-T00H |
| Handelsmerk | AMPIRE |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1280×800 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | AMPIRE |
| diagonale grootte | 7.0 inch |
| pixel formaat | 1280(RGB)×800 [WXGA] 217PPI |
| aktiewe area | 149.76(H)×93.6(V) mm |
| ring area | 152.76(H)×96.6(V) mm |
| helderheid | 1275 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 50% NTSC |
| gewig | - |
| raamkoers | 60Hz |
| model | AM-1280800P4TZQW-T00H |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 162.3(H)×107.9(V) ×11.76(D) mm |
| behandeling | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| reaksie tyd | 35 (Typ.)(Tr+Td) |
| bedryfsmodus | SFT, Normally Black, Transmissive |
| Ligbron | WLED [5S4P] , 50K hours , With LED Driver |
| ontwerp vir | Industrial Outdoor High Brightness |
| raakpaneel | PCAP |
