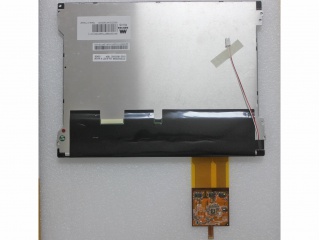

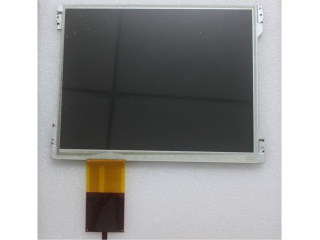

| Onderdeel nommer | AM-1024768R7TNQW-T00H |
| Handelsmerk | AMPIRE |
| Grootte | 12.1 |
| Toepassing | Industrial |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K/16.7M |
| Agterlig | 9S3P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel grootte | 12.1" |
| resolusie | 1024(RGB)×768, XGA, 105PPI |
| vertoon area | 245.76(W)×184.32(H) mm |
| omtrek grootte | 279(W)×209(H) ×11.2(D) mm |
| helderheid | 510 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| beste uitsig op | - |
| kleure vertoon | 262K/16.7M |
| frekwensie | 60Hz |
| paneel gewig | - |
| sein koppelvlak | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneel model | AM-1024768R7TNQW-T00H |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 16 (Typ.)(Tr+Td) |
| tipe lamp | 9S3P WLED , 50K hours , Without Driver |
| raakskerm | PCAP |
| aansoek | Industrial |
