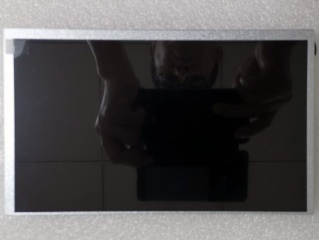

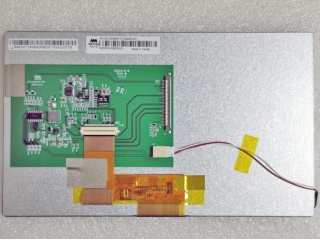

| Onderdeel nommer | AM-1024600Y3TZQW-A0H |
| Handelsmerk | AMPIRE |
| Grootte | 9.0 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-1024600Y3TZQW-A0H |
| paneel grootte | 9.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1024(RGB)×600, WSVGA, 132PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 196.6(W)×114.1(H) mm |
| ring opening | 200(W)×117.55(H) mm |
| omtrek grootte | 211.1(W)×126.5(H) ×11(D) mm |
| oppervlak | - |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 18/17 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M |
| tipe lamp | WLED , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | TBD |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
