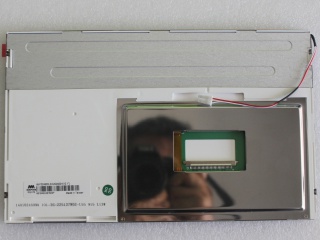

| Onderdeel nommer | AM-1024600L3HMQW-00H |
| Handelsmerk | AMPIRE |
| Grootte | 10.1 |
| Toepassing | Industrial Automotiv |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | AMPIRE |
| model | AM-1024600L3HMQW-00H |
| diagonale grootte | 10.1 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1024(RGB)×600 [WSVGA] 117PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 222.72(H)×125.28(V) mm |
| buitelyn dof. | 235(H)×145.8(V) ×8.85(D) mm |
| ring area | - |
| behandeling | Antiglare |
| helderheid | 550 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | - |
| reaksie tyd | 4/12 (Typ.)(Tr/Td) |
| kykhoek | 70/70/70/50 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K 47% NTSC |
| Ligbron | WLED [6S6P] , 30K hours , With LED Driver |
| gewig | TBD |
| ontwerp vir | Industrial Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 8-bit) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
