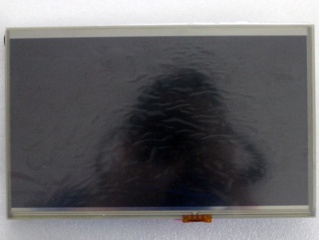

| Onderdeel nommer | AM-1024600L2HMQW-T01H |
| Handelsmerk | AMPIRE |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | AMPIRE |
| model | AM-1024600L2HMQW-T01H |
| diagonale grootte | 10.1 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1024(RGB)×600 [WSVGA] 117PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 222.72(H)×125.28(V) mm |
| buitelyn dof. | 235(H)×145.8(V) ×9.8(D) mm |
| ring area | 225.92(H)×128.48(V) mm |
| behandeling | - |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | - |
| reaksie tyd | 4/12 (Typ.)(Tr/Td) |
| kykhoek | 70/70/70/50 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K 47% NTSC |
| Ligbron | WLED [6S6P] , 50K hours , With LED Driver |
| gewig | TBD |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | 4-wire Resistive Touch |
| koppelvlak tipe | LVDS (1 ch, 6-bit) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -5 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
