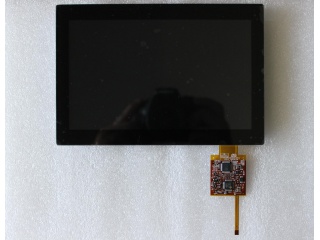

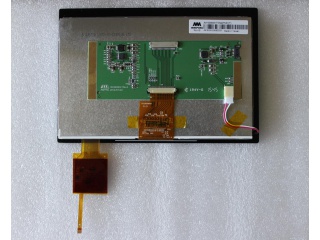

| Onderdeel nommer | AM-1024600K7TMQW-T53H |
| Handelsmerk | AMPIRE |
| Grootte | 7.0 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K/16.7M |
| Agterlig | 5S3P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel grootte | 7.0" |
| resolusie | 1024(RGB)×600, WSVGA, 169PPI |
| vertoon area | 153.6(W)×90(H) mm |
| omtrek grootte | 165.5(W)×104.44(H) ×11.93(D) mm |
| helderheid | 425 cd/m² (Typ.) |
| kykhoek | 75/75/70/75 (Typ.)(CR≥10) |
| beste uitsig op | 6 o'clock |
| kleure vertoon | 262K/16.7M |
| frekwensie | 60Hz |
| paneel gewig | TBD |
| sein koppelvlak | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneel model | AM-1024600K7TMQW-T53H |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | - |
| kontras verhouding | 700:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 20/20 (Typ.)(Tr/Td) |
| tipe lamp | 5S3P WLED , 50K hours , With LED Driver |
| raakskerm | PCAP |
| aansoek | Industrial |
