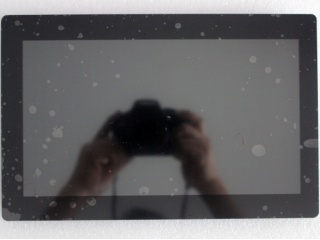

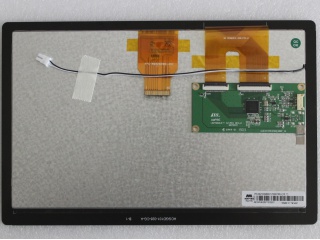

| Onderdeel nommer | AM-1024600ITZQW-T00H |
| Handelsmerk | AMPIRE |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | AMPIRE |
| skerm grootte | 10.1 inch |
| pixel nommer | 1024(RGB)×600 (WSVGA) 117PPI |
| aktiewe area (mm) | 222.72 × 125.28 (H×V) |
| ring area (mm) | - |
| helderheid | 465 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 262K/16.7M 70% NTSC |
| massa | - |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| spanningstoevoer | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model naam | AM-1024600ITZQW-T00H |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 255 × 165.8 (H×V×D) |
| behandeling | Antiglare, Hard coating |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| reaksie | 12/28 (Typ.)(Tr/Td) ms |
| werksmodus | IPS, Normally Black, Transmissive |
| agterlig | WLED , 50K hours , No Driver |
| gebruik vir | Industrial |
| raakskerm | PCAP |
