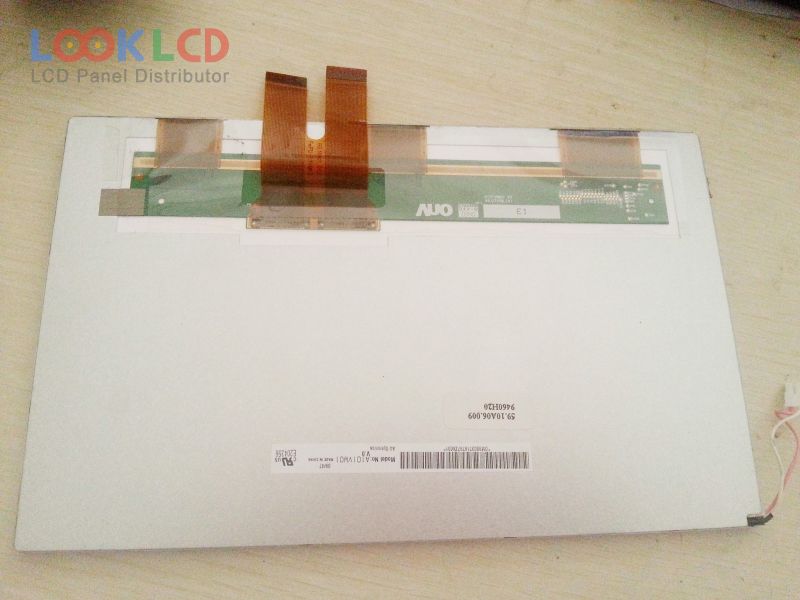

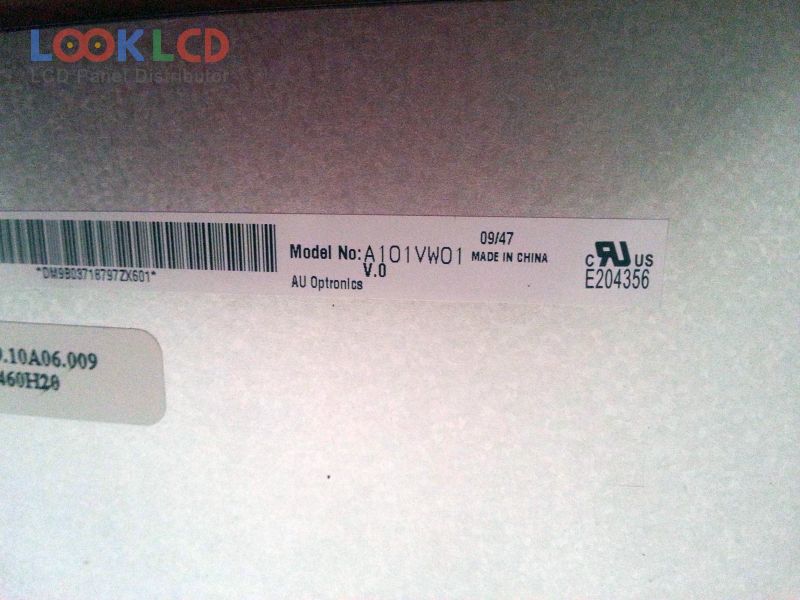

| Onderdeel nommer | A101VW01 V0 |
| Handelsmerk | AUO |
| Grootte | 10.1 |
| Toepassing | DPF |
| Resolusie | 800×480 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | TTL |
| paneel handelsmerk | AUO |
| paneel model | A101VW01 V0 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.1 inch |
| resolusie | 800(RGB)×480 , WVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 219.6×131.76 mm |
| buitelyn | 235×145.9×6.2 mm |
| oppervlak | Antiglare |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 12/18 (Typ.)(Tr/Td) |
| kykhoek | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit), 60 pins |
| insetspanning | 3.3/8.8/15/-7.0/3.7V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| aansoek | DPF |
