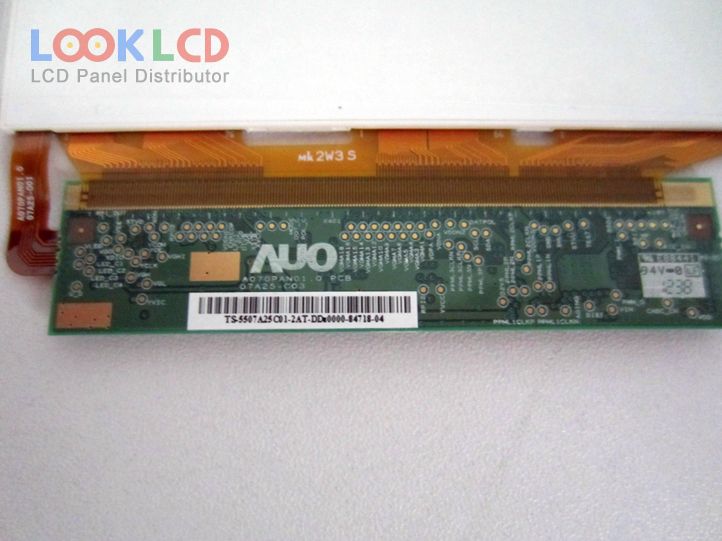

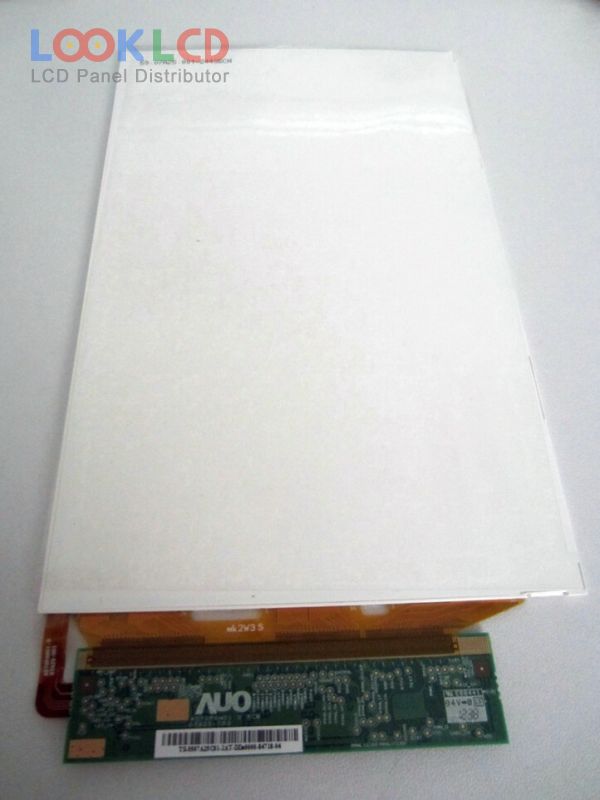

| Onderdeel nommer | A070PAN01.0 |
| Handelsmerk | AUO |
| Grootte | 7.0 |
| Toepassing | PAD |
| Resolusie | 900×1440 |
| Samestelling | LCM |
| Helderheid | 450 |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| paneel handelsmerk | AUO |
| paneel model | A070PAN01.0 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 900(RGB)×1440 , WXGA+ |
| vertoonmodus | AHVA, Normally Black, Transmissive |
| aktiewe area | 94.23×150.77 mm |
| buitelyn | 104.53×163.64×2.3 mm |
| oppervlak | Hard coating |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193150% |
| reaksie tyd | 18/12 (Typ.)(Tr/Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 5S4PWLEDWithout Driver |
| sein koppelvlak | MIPI (4 data lanes), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | PAD |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| DLC0700YZG-1 | Other | 7.0 | 1024×600 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
