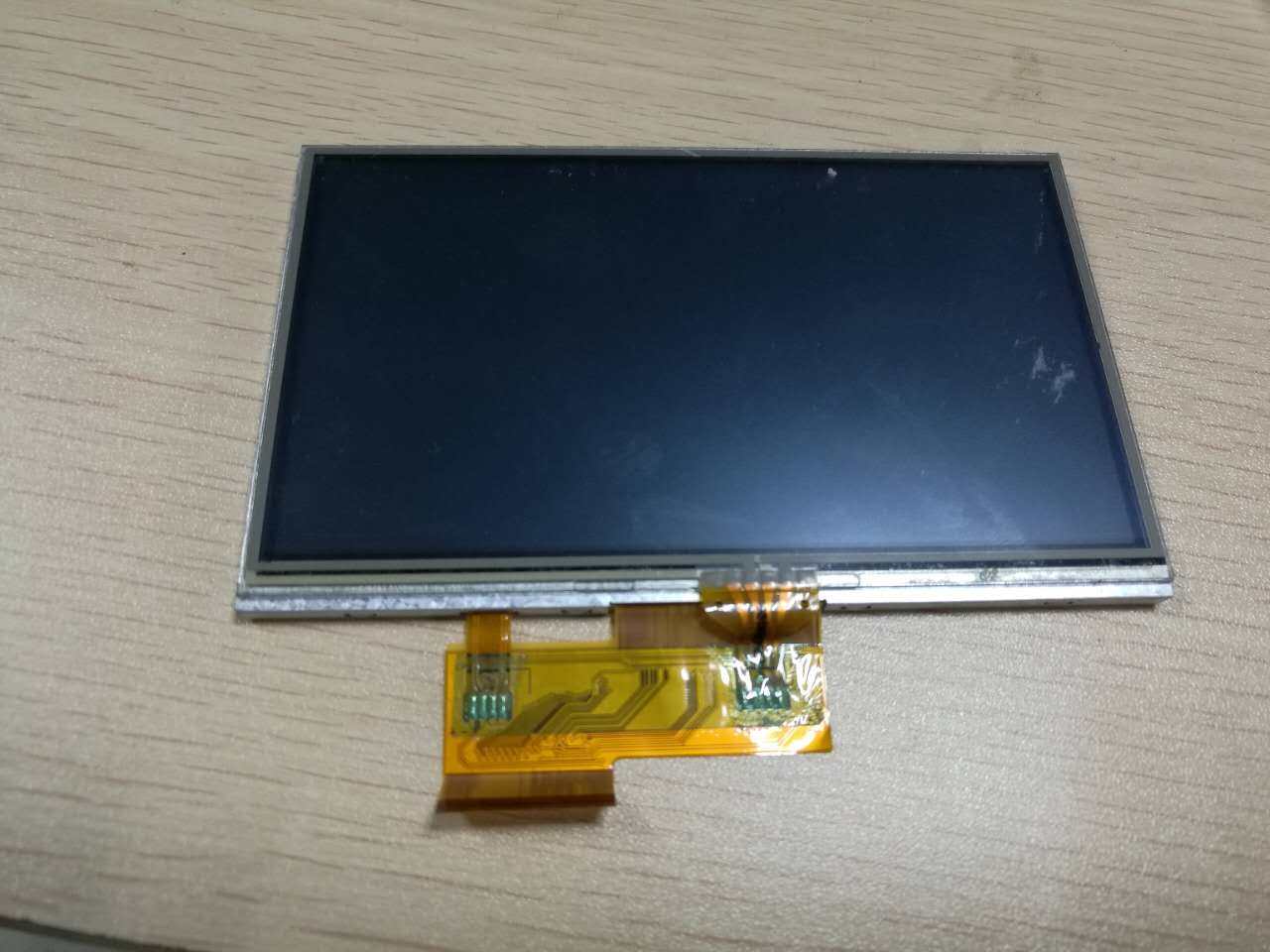

| Onderdeel nommer | A050FTT04.0 |
| Handelsmerk | AUO |
| Grootte | 5.0 |
| Toepassing | Portable Navigation |
| Resolusie | 480×272 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | AUO |
| diagonale grootte | 5.0 inch |
| pixel formaat | 480(RGB)×272 [WQVGA] 109PPI |
| aktiewe area | 110.88(H)×62.832(V) mm |
| ring area | - |
| helderheid | 400 cd/m² (Typ.) |
| kyk rigting | 6 o'clock |
| kykhoek | 70/70/40/60 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 50% NTSC |
| gewig | 75g |
| raamkoers | - |
| koppelvlak tipe | Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC |
| kragtoevoer | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | A050FTT04.0 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 120.73(H)×75.83(V) ×4.47(D) mm |
| behandeling | Hard coating (3H) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| reaksie tyd | 7/23 (Typ.)(Tr/Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| Ligbron | WLED [6S2P] , 10K hours , W/O Driver |
| ontwerp vir | Portable Navigation MP3 PMP |
| raakpaneel | 4-wire Resistive Touch |
