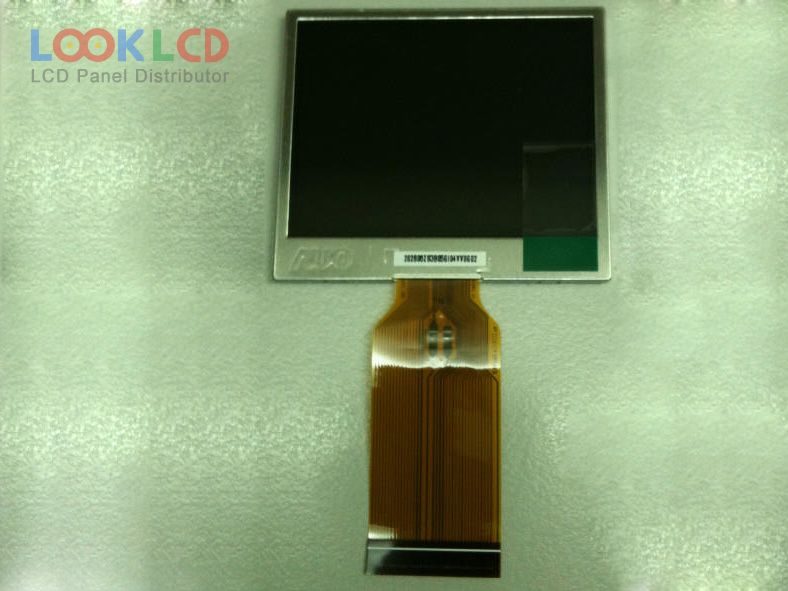

| Onderdeel nommer | A024CN03 V2 |
| Handelsmerk | AUO |
| Grootte | 2.4 |
| Toepassing | DSC |
| Resolusie | 480×234 |
| Samestelling | LCM |
| Helderheid | 250 |
| CR | 250:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Serial RGB |
| paneel handelsmerk | AUO |
| paneel model | A024CN03 V2 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 2.4 inch |
| resolusie | 480×234 |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 48×35.685 mm |
| buitelyn | 54.9×47.45 mm |
| oppervlak | Hard coating |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 250:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit) |
| reaksie tyd | 20/30 (Typ.)(Tr/Td) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| tipe lamp | WLED |
| sein koppelvlak | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| insetspanning | 3.3/3.3/12.5/-12.5V (Typ.)(VCC/PVDD/VGH/VGL) |
| rohs: | |
| aansoek | DSC |
