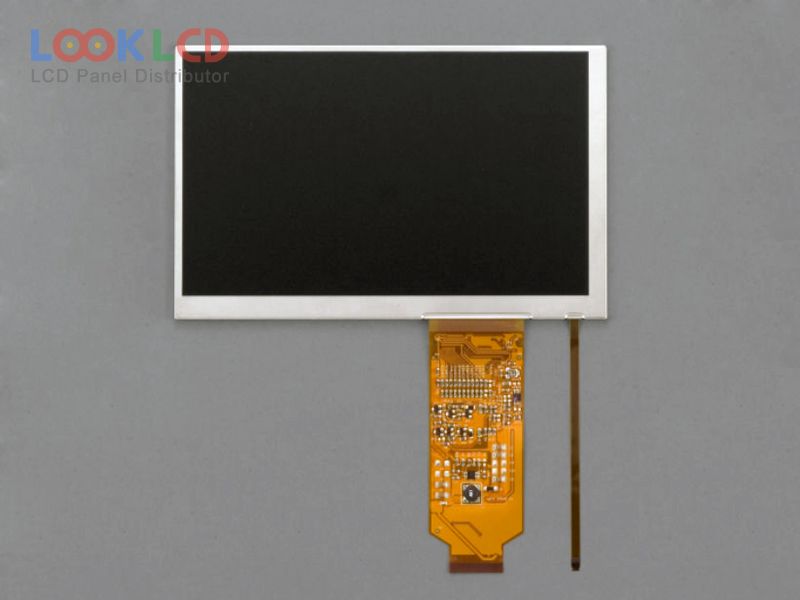

| Onderdeel nommer | 70WVW4A |
| Handelsmerk | SII |
| Grootte | 7.0 |
| Toepassing | CNS |
| Resolusie | 800×480 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | SII |
| paneel model | 70WVW4A |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 800(RGB)×480 , WVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 152.4×91.44 mm |
| buitelyn | 165×105.8×5.15 mm |
| oppervlak | Antiglare |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 5/11 (Typ.)(Tr/Td) |
| kykhoek | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 7S3PWLEDWithout Driver |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | CNS |
