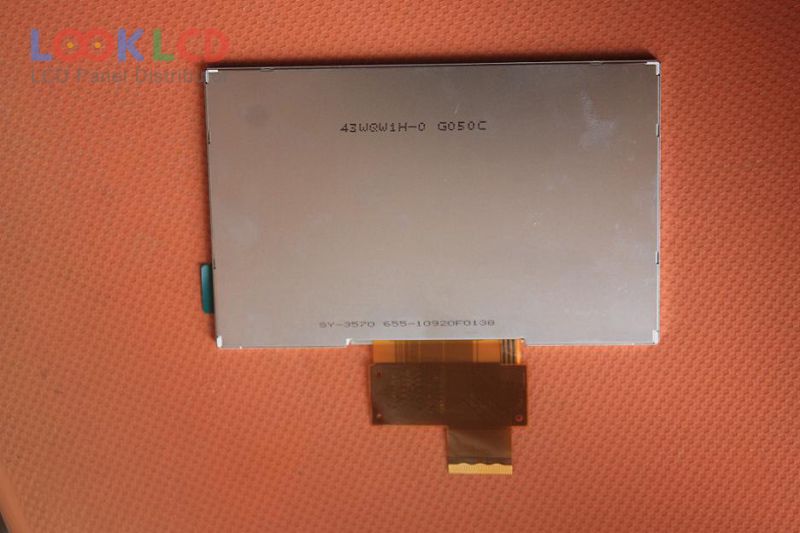

| Onderdeel nommer | 43WQW1H |
| Handelsmerk | SII |
| Grootte | 4.3 |
| Toepassing | PND |
| Resolusie | 480×272 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 400:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | SII |
| paneel model | 43WQW1H |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 4.3 inch |
| resolusie | 480(RGB)×272 , WQVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 95.04×53.856 mm |
| buitelyn | 105.5×67.2 mm |
| oppervlak | Clear, Hard coating |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) |
| kleure vertoon | 16.2M (6-bit + Dithering), CIE193150% |
| reaksie tyd | 15/35 (Typ.)(Tr/Td) |
| kykhoek | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| tipe lamp | 4S2PWLED |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit) + SPI, 51 pins |
| aansoek | PND |
